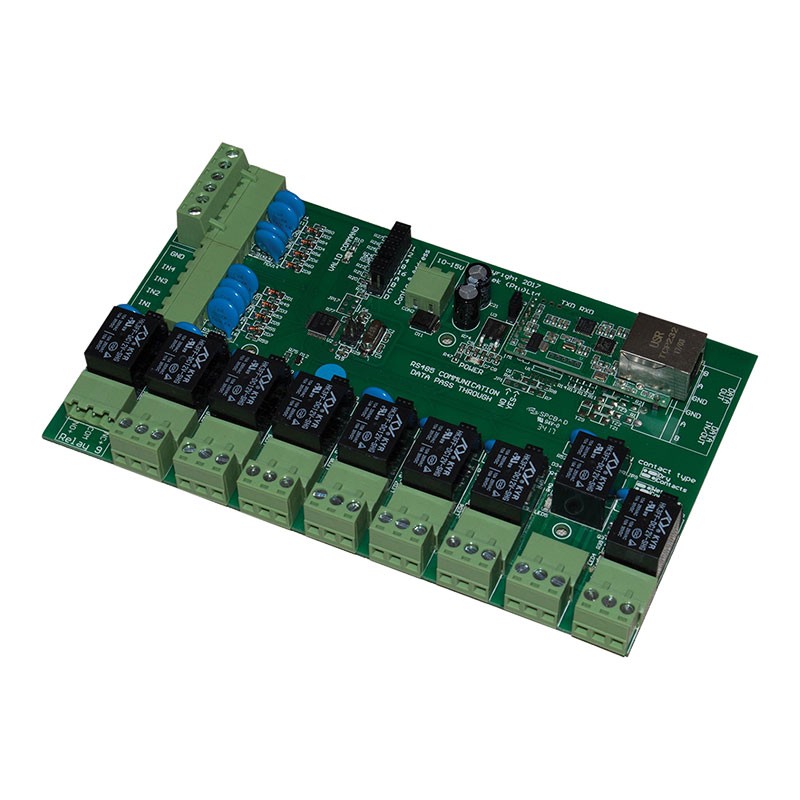

Smart IO Relay Card
The Smart IO card provides 8 digital and 8 user programmable relays plus 1 communications good relays. The Smart IO card is typically used as an interface between a network containing Tension Sensor Wire Node1 network controller, Druid 25 LCD or Druid 28 LCD energizer, and third-party systems, but is a general input-output device. The Smart IO card can also be configured to control a Druid Network IO Card 8+1.
Pagamenti sicuri
Pagamento sicuro e protetto.
Spedizione
Spedizione rapida e tracciata.
Resi
Reso facile entro 30 giorni.
Features:
- 8 digital inputs
- 8 plus 1 programmable relay outputs (8 user relays + 1 valid comms relay)
- Robust surge protection is included on all inputs and outputs
- All relays can be individually configured to be independent dry contacts or common-ground wet contacts with 12V nominal output
- Each relay has a very useful LED indicator to show if the relay is energized
- 3 communications debug LED indicators for TX, RX and VALID COMMAND
- 1 power-on LED indicator
- In addition to the input states, the IO card also reports back temperature and supply voltage level
- Removable connectors to ease replacement
- Designed to mount into a Nemtek battery-backed power pack
NMT-2203
